| Model | #VAF-22(WN) | #VAF-40(WN) | #VAF-50(WN) | #VAF-78(WN) | #VAF-98(WN) | #VAF-187(WN) |
|---|---|---|---|---|---|---|
| Inner Dimensions (Dia x Height) | 250×450mm | 300×500mm | 350×550mm | 400×600mm | 450×600mm | 550×750mm |
| Dimensions of Basket (Dia x Height) | 225×300mm | 275×350mm | 325×400mm | 375×450mm | 425×450mm | 525×600mm |
| Capacity | 22 Ltrs | 40 Ltrs | 50 Ltrs | 78 Ltrs | 98 Ltrs | 187 Ltrs |
| Heater Load | 2.0 KW | 2.0 KW | 3.0 KW | 4.5 KW | 4.5 KW | 4.5 KW |
| Gasket | Made of Jointless Silicon Rubber | |||||
| Controller | Semi Automatic Digital temperature Indicator-cum-Controller | |||||
| Display | Digital LED with Set Value (SV) and Process Value (PV) | |||||
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically | |||||
| Buzzer | Alarm for cycle end | |||||
| Sterilizing Pressure | 1.2 kgf /cm² (15 psi) at 121ºC | |||||
| Operating Pressure | From 15psi to 22 psi (Adjustable) | |||||
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | |||||
| MOC (External Wall) | Stainless Steel | |||||
| MOC (Top Lid) | Thick machined Stainless Steel plate | |||||
| Basket | Stainless Steel (SS-304) | |||||
| Exhaust Supply | Manually through a exhaust valve | |||||
| Power Supply | 220/230V AC, 50/60Hz | |||||

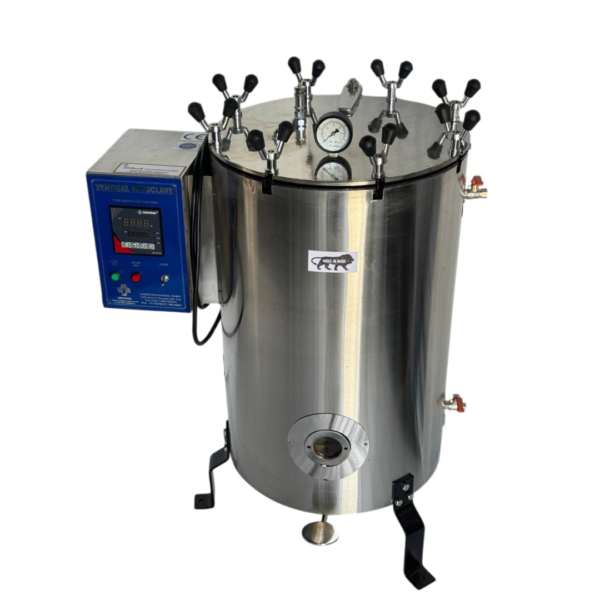

DOUBLE WALLED VERTICAL STERILIZER WITH WING NUT CLOSING LID.
It is low cost substitute for sterilization processes with outer wall. inner chamber and lid made of stainless steel. Lid is closes through WING NUT CLOSING ARRANGEMENT and is supplied with a stainless steel basket but fitted with drain valve and mains cord. To work on 220/230 Volts AC Supply.
